Addressable RGB

Description

Parameters

Brand:BTF-LIGHTING
IC type :WS2812B Or WS2811
Color order : G RB（NOT RGB）
Gray level: 256
View angle: 120°
Input voltage: DC5V or DC12V
Color: full color 24-bit
FPCB board color: Black/White
FPCB Width:10mm
Power:0.1W~0.3W/LED 30W~90W/16.4ft
Recommended power supply：DC5V20A (100W) or DC12V8A(96W)
Standard Reel Length:16.4FT/roll
Operating Temperature: -20 ~ +40°C
Led Qty: 300LEDs/16.4ft 300 pixels/16.4ft
Length x Widthx Height：1000mmx10mmx2mm
Wave length(nm):Red（620-630） ; Green（515-530） ; Blue（465-475）
Waterproof level: IP30/IP65/IP67
Double Side Tape: IP30/IP65 . There is no double side tape on IP67.
Light up 1 color（red or green or blue) 0.1W/LED . Light up 2 colors (red+green) 0.2W/LED , Light up 3 colors (red+green+blue=mixed white) 0.3W/LED

Precautions

The LEDs at the far end of the strip might be dimmer because of the added resistance and voltage drop that occurs during the current flows to that end of the strip. The solution is adding voltage every 16.4ft or 32ft according to the actual situation.
LED strip is made by 50cm FPCB, so there is a solder point each 50cm(1.6FT) on strip. But this minor flaw has no any bad effect on the strip’s performance. In fact, ALL the LED strips on the market are manufactured in half-meter lengths.

Addressable RGB

Features

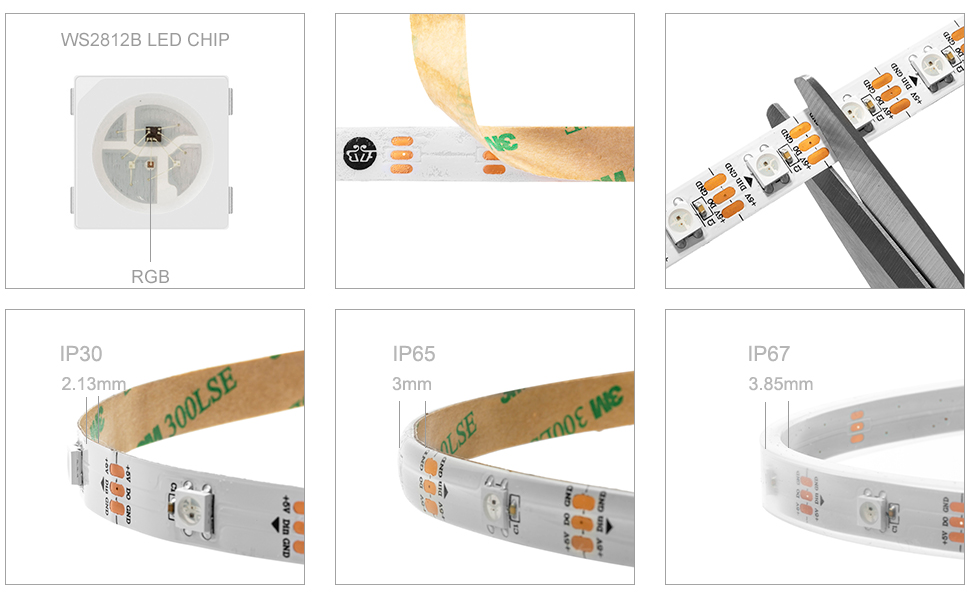

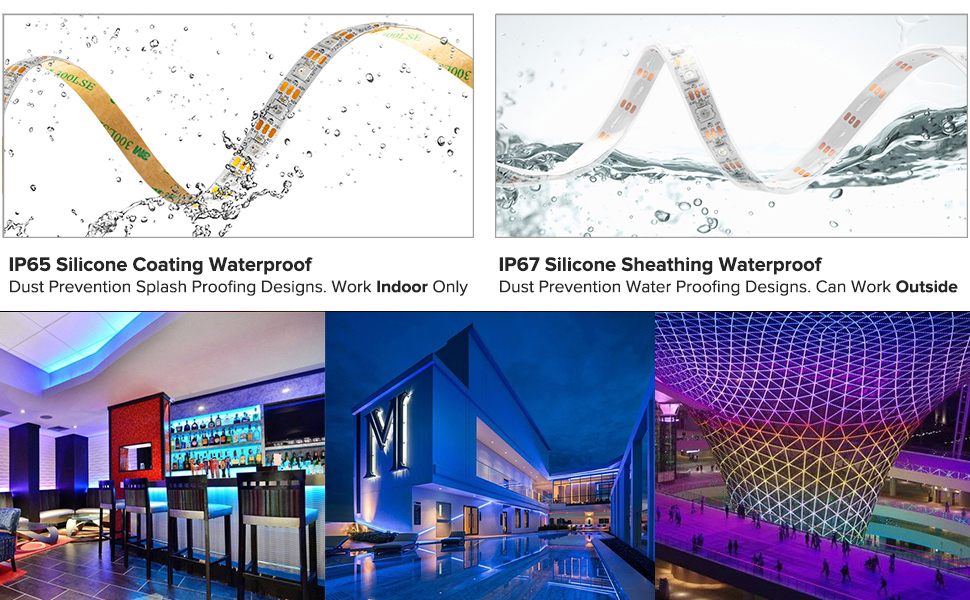

Features Cuttable: Every three LEDs can be cut off, LED strip still working after it is cut. Cut it to the length you just need. Adhesive: They(Only IP30, IP65) have double sides adhesive tapes on the back.There is no double side tape on IP67 , IP67 needs screws and clips to install. You can paste IP30/IP65 on the bookcase, TV, wine cabinet, ceiling, windowsill easily. Colorful: Red, Green, Blue. Dream full color. curtain-up/ flow water/raindrop jump flash and so on hundreds of lighting effect, you can also edit animation effect by Coreldraw/Flash/LedEdit software. Long life: Life span: more than 50000hrs Waterproof level: Non-waterproof (IP30) Silicone coating waterproof (IP65) Silicone coating sheathing waterproof (IP67) Glue-Pouring Waterproof(IP68)
